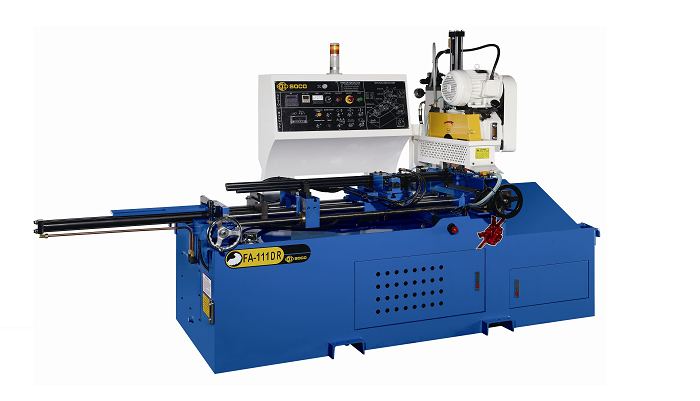

Soco's Steel Tube Cutting OD 114mm with Digital Display

SOCO's has launched a new product in category of Tube Cutting, The New SOCO's Machine has improve In order to achieve higher fuel efficiency and lowering materials costs, thicker tubes and solid bars have been replaced by thin wall High Tensile tubes, which offer lower weight without compromising in strength and safety.

Digital Display ( DR Lines )
  1. FA-111DR
  2. FA-127DR
  3. Digital Display of Feeding Length and Programmable Counter
    Control Panel with Movements’ Display for Easy troubleshooting
OD 114mm tube cutting capacity. Digital Readout and Parts Counter. Error Display on Control Panel for Easy Troubleshooting
  1. Digital counter for automatic operation ( Cutting length / Quantity set up / Counter )
  2. Display of Movements on Control Panel for Easy troubleshooting
  3. Standard with Speed Inverter for speeds of 22 ~ 108 RPM
  4. Fully automatic hydraulic system
  5. Feeding lengths up to 3 strokes X 1000 mm
  6. Patented Gearbox for both Heavy and Light Cutting of Tubes and Bars
  7. Vertical sliding saw head ensures stable and precise cutting
  8. Backlash eliminating device prolongs the life of saw blade
  9. Counter Balance System for maximum stability through the entire cut
  10. Patented floating feeding carriage for superior tube cutting length accuracy and smooth material handling
  11. Rigid Clamping vise provides secure material holding
  12. Automatic lubrication system maintains good work performance
  13. Circulating cooling system results in smooth cutting surfaces and longer blade life
  14. Electronic saw blade protection cover for safety operation
  15. Built-in chips tray for convenient cleaning and maintenance
Capacity according to what items are used
  1. Mild Steel Capacity
  2. Ø110mm
  3. Solid Round Bar ( mm )
  4. 75mm
  5. Square Tube ( mm ) ( Cutting Angle 90 Degree )
  6. 110mm x110mm
